Action stations.

Had a visit up to the house again on Monday and, at last, after a long haiatus  things are really getting going.

When I arrived three men were busying about fitting the panels of 125mm  insulation on the floor.

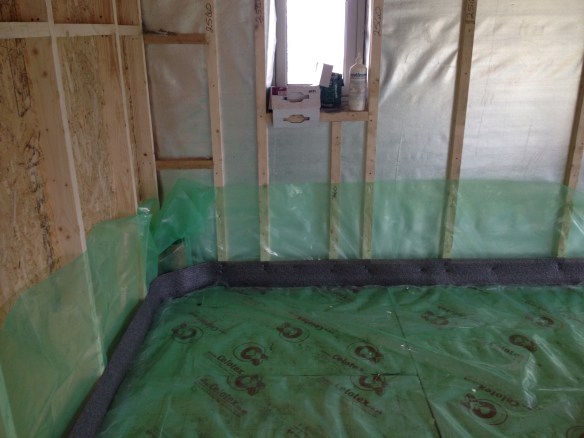

  Then as soon as that was done, the plastic sheet went down and insulation around the edge of that. Blink and you’d miss it at the rate they worked.

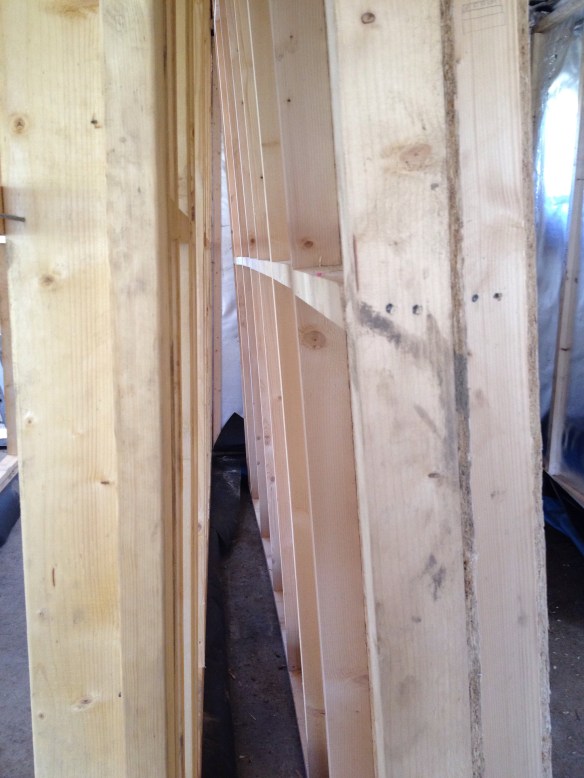

I was pleased to see that the racking panel wall was in at last – And the masonry wall behind where the stove will go. Fortunately Scotframe’s mistake in sending an additional supporting wall served to our advantage as the wall that was made to go there was badly warped beyond use and so the other wall they sent served in its place, with some adjustments.  Pieces from the warped wall were canibalised  to support the masonry wall.

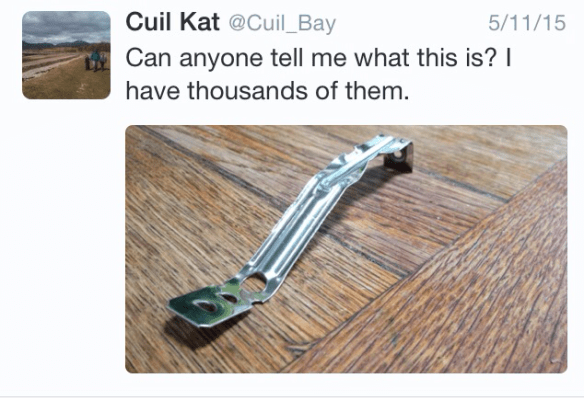

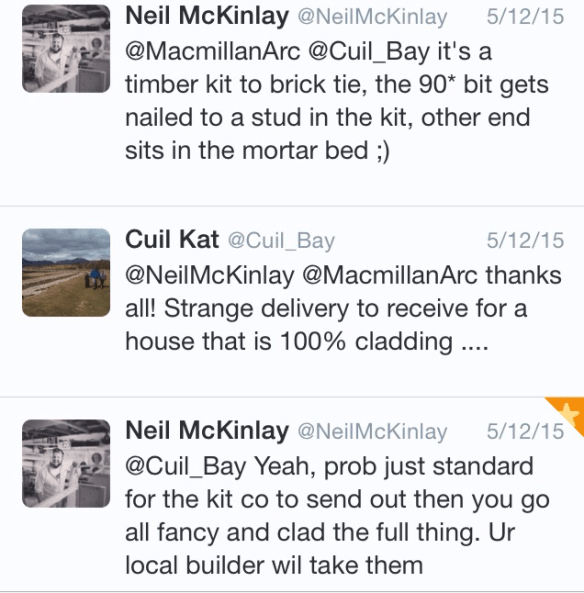

We were actually able to utilize some of the tens of thousands of masonry ties that Scotframe delivered with the kit. I needed to get them ID-ed by the experts on Twitter as I had no idea what they were for.



 (Apparently they are to tie a Masonary wall to a wood frame design.)  so we managed to use about 25 out of the overflowing boxes (I am concerned that they reproduce while I am away as there always seem more on my return).  I donated the rest of the ties to the builders – I hope they can make use of them elsewhere.

It was all looking good except that the hearth wasn’t in place.  The amount of effort, I thought, and frankly blood sweat and tears that had gone into working out the hearth (link) meant I had a small panic when I saw them laying the insulation panels where the constructional hearth should be.

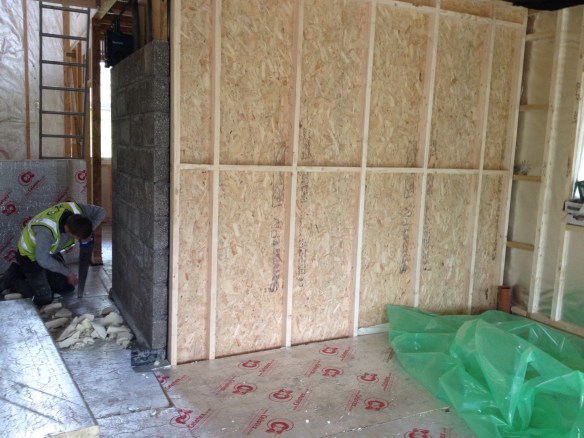

  Here’s the poor guy sawing up the insulation to make room for the Foamglas insulation

Builder #2 was supposed to put that in when they did the walls and it seemed that they hadn’t. Fortunately I was there at exactly the right time to make sure it wasn’t forgotten. The guys swiftly cut the Foamglas to size while I was out calling builder #2 and it was all pretty much solved in the time I had managed to get a signal.

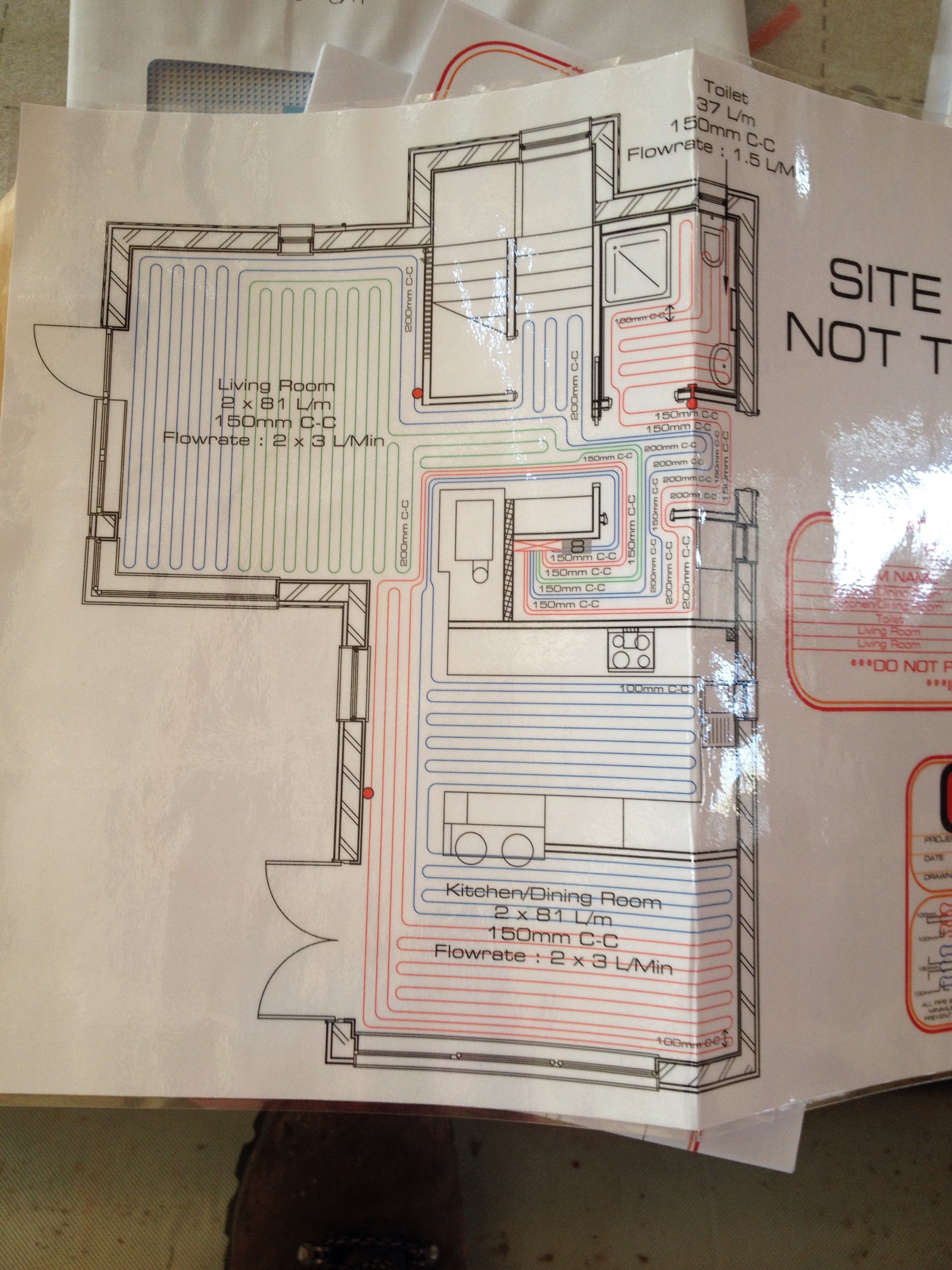

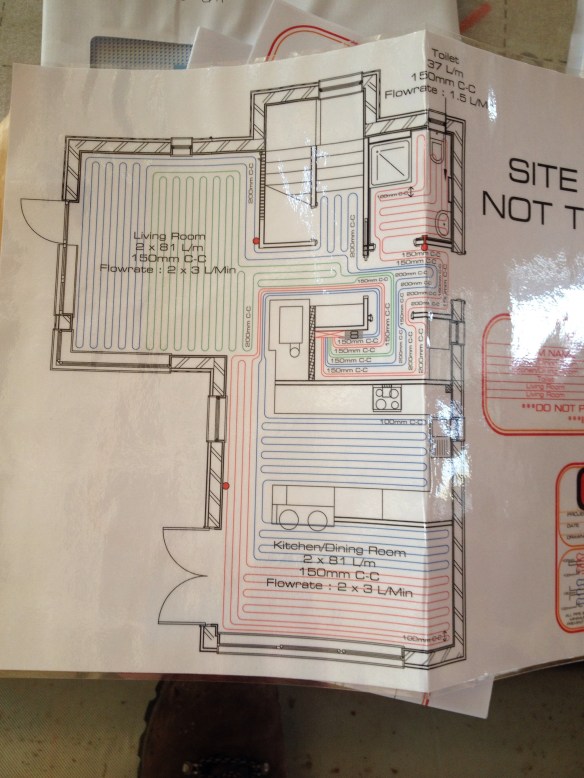

By the time I left, the underfloor heating was being laid

Plan is, the Glen Almond screed comes in over the underfloor heating and also over  the Foamglas to form the constructional hearth.

That’s the plan.

It’s happening on Thursday so I am trying not to be stressed and just let it happen.

Monday starts the plumbing electricity the MVHR and the cladding.    Unless there is a crisis in the meantime that is.
