The stove of destiny

The stove is here! A very exciting day with Verek and Matt of the Kinross stove company getting this long planned and brain-exploding stove installed at last.


This build may have been about problem after problem after problem but this was a case where all that planning and drawing sketch after sketch appears to have paid off.

.

The stove was the right size and the flue fitted through the ridiculously small allowance for it.

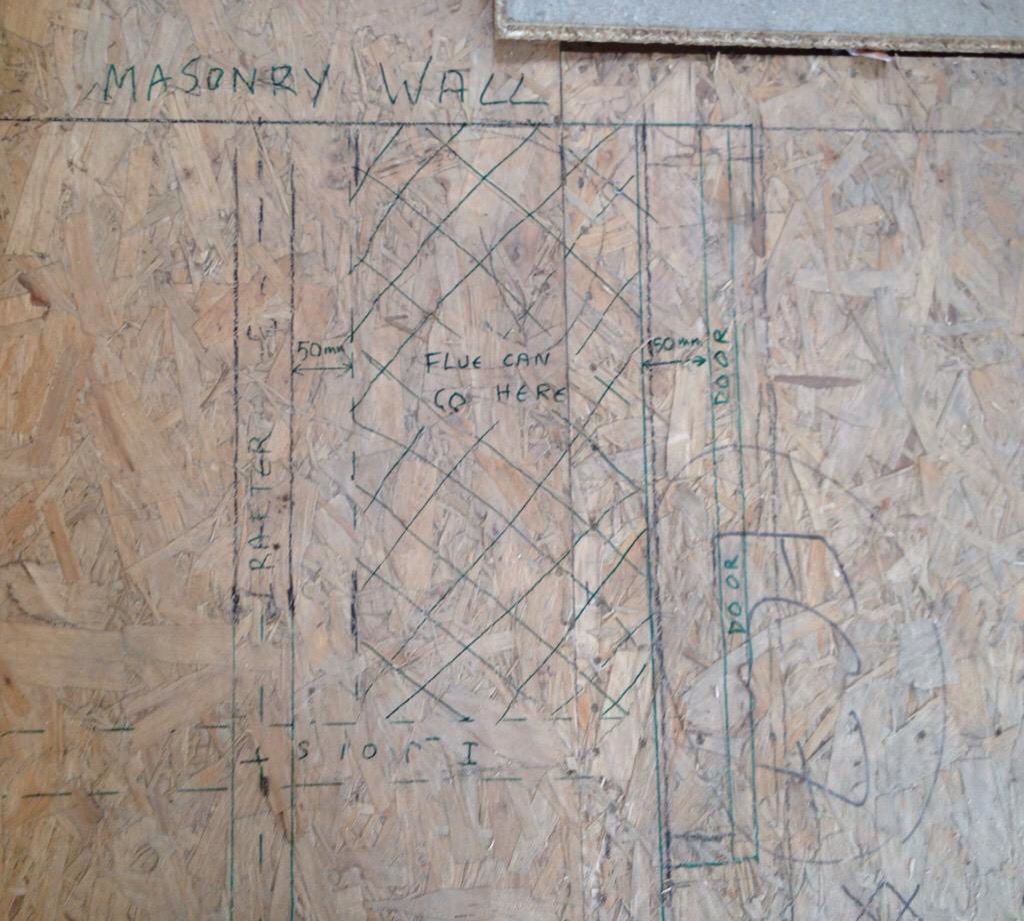

  here’s all my calculations on the floor to show where the flue needs to go

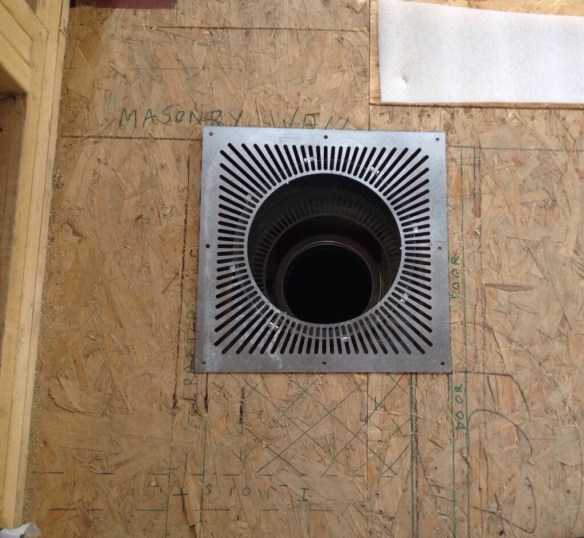

And here’s how the flue amazingly just fits into the space.

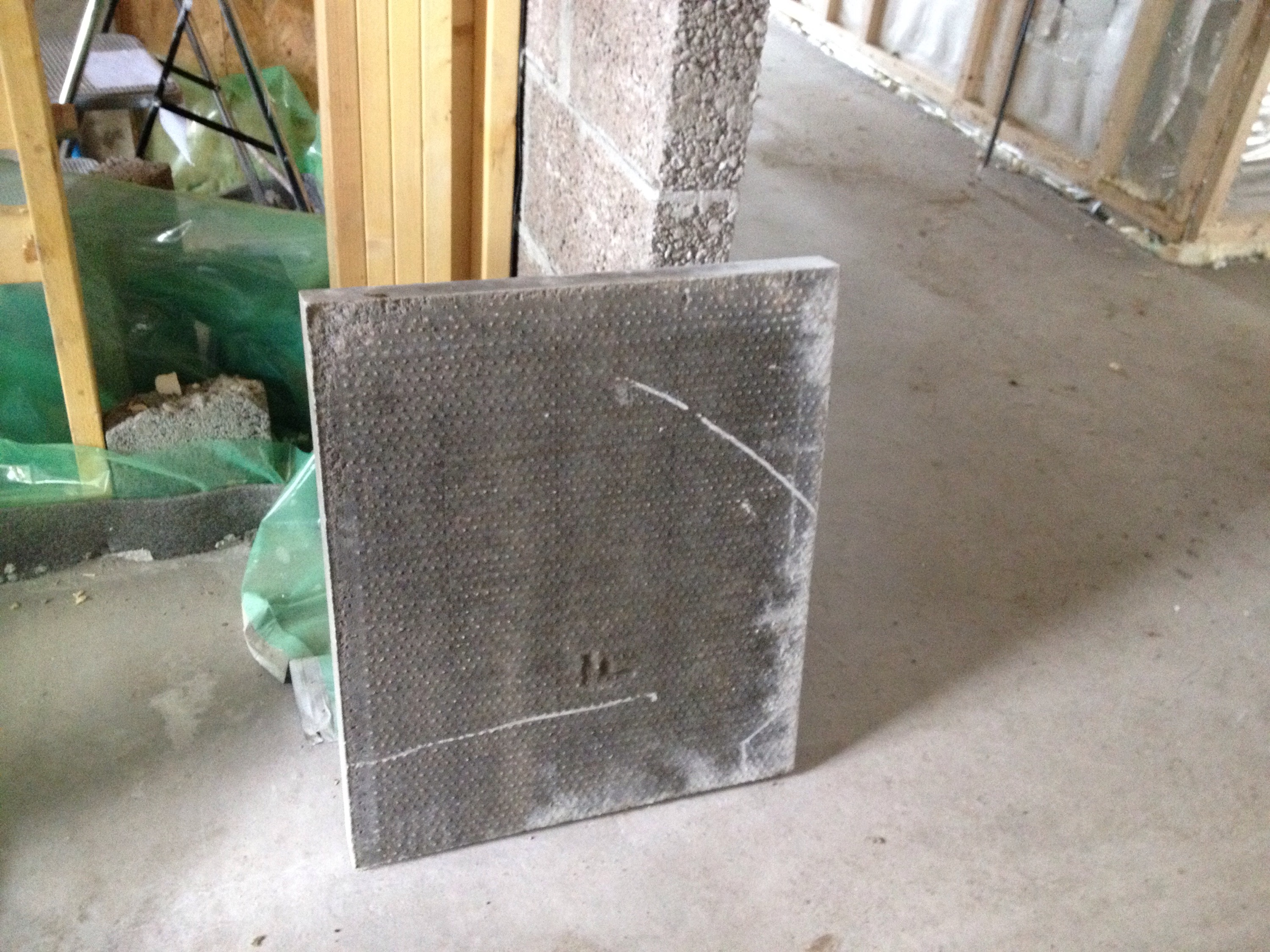

I’d started the day with an early excursion to B&Q to get a slab to go under the stove. It was ‘just in case’ as I’d sent the details of the slab for the stove to Builder#3 but he didn’t think it had reached him. It was all getting a bit last minute so I’d popped into B&Q for one big concrete slab and also a few smaller ones just in cas helped by the very friendly Larry who obviously found  it easier to function than me 7am

Up at the house the stove fitters were nowhere to be seen. But Builder#3 arrived with a slab exactly the right size. I should have had faith.

 .
Our stove fitters were up a track by a locked gate ‘in the middle of no-where’. But eventually they arrived on site and proceeded to be unbeleivably efficient.

.

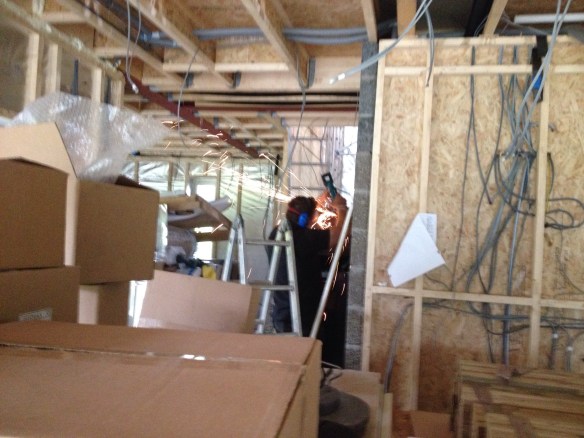

They worked out a path into the house avoiding the piles of plasterboard for the hefty stove and then it was in place. The flue fitted through the space allowed for it (once Verek had reduced the length of the connector – sparks everywhere). It all seemed effortlessly smooth.

    The stove is a spartherm varia 2L. It’s designed to have blockwork or fire board around it so it is inset into the wall. The dimensions of the house meant that we had a very limited space where the stove could go in. And this was the one that fitted.

I had spent sat too many hours trying to get my head around what was needed and  chose pretty much the only stove in the world that could work in the space previously all weed for a Masonary stove (see blog)– with a ‘helix’ on top (mainly to absorb the heat from the flue gasses and release back into the room, but also because it had a side exit for the flue which means it would fit in the gap allowed)
I was buzzing around them like an anxious bee but they really had it sorted. After all my stove angst it was actually working. I left them to it and went back to Glasgow.
On the second day the whole lot was finished – flue in, slater in to slate round the flue, the air pipe* sealed in. We are ready to go!
 * the stove is a sealed unit burning in air brought in from the outside via a pipe going through the foundations. This is because the house is so well sealed the stove needs its own air source to burn



the stove came with two guys but I think I was supposed to send them back after the installation.
